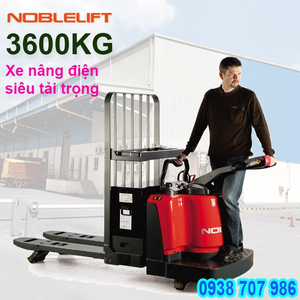

Mã sản phẩm: PT 27/36R Thương hiệu: NOBLELIFT GERMANY Bảo hành: 12 THÁNG
0938 707 986
Type sheet for industrial truck acc. to VDI 2198 | 1KG=2.2LB 1INCH=25.4mm | |||||||
---|---|---|---|---|---|---|---|---|
Distinguishing mark | 1.2 | Manufacturer`s type designation | PT 27R | PT 36R | ||||
1.3 | Power (battery ,diesel, petrol, gas, manual) | Battery | Battery | |||||
1.4 | Operator type | walkie/ride-on | walkie/ride-on | |||||
1.5 | Load Capacity / rated load | Q (lbs) | 6000 | 8000 | ||||
1.6 | Load centre distance | c (in) | 24 | 48 | ||||
1.8 | Load distance ,centre of drive axle to fork | x (in) | 40.5 | 61.7 | ||||
Weight | 1.9 | Wheelbase | y (in) | 63.6 | 83.9 | |||
2.1 | Service weight | lbs | 2330 | 2465 | ||||
2.2 | Axle loading, laden front/rear | lbs | 3100/5260 | 2860/5544 | ||||
2.3 | Axle loading, unladen front/rear | lbs | 1870/550 | 2024/440 | ||||
Tyres, chassis | 3.1 | Tires | Polyurethane (PU) | Polyurethane (PU) | ||||
3.2 | Tire size, front | Øx w (in) | Ø12.2 x 4.13 | Ø12.2 x 4.13 | ||||
3.3 | Tire size, rear | Øx w (in) | Ø3.2 x 3.2 | Ø3.2 x 2.76 | ||||
3.4 | Additional wheels(dimensions) | Øx w (in) | Ø4.9 x 2.4 | Ø4.9 x 2.4 | ||||
3.5 | Wheels,number front/ rear(x=driven wheels) | 1 x +2/4 | 1 x +2/8 | |||||
3.6 | Tread, front | b10 (in) | 26.8 | 26.8 | ||||
3.7 | Tread, rear | b11 (in) | 12.9/17.9 | 12.9/17.9 | ||||
Dimensions | 4.4 | Lift | h3 (in) | 5.9 | 5.9 | |||
4.9 | Height of tiller in drive position min./ max. | h14 (in) | ||||||
4.15 | Height, lowered | h13 (in) | 3.25 | 3.25 | ||||
4.19 | Overall length | l1 (in) | 91.7 | 139.8 | ||||
4.20 | Length to face of forks | l2 (in) | 43 | 43 | ||||
4.21 | Overall width | b1 (in) | 37/37.8 | 37/37.8 | ||||
4.22 | Fork dimensions | s/e/l (in) | 2.4/9.0/48 | 2.4/10/96 | ||||
4.25 | Distance between fork- arms | b5 (in) | 22/27 | 23/28 | ||||
4.32 | Ground clearance, centre of wheelbase | m2 (in) | 0.98 | 0.98 | ||||
4.34 | Aisle width for pallets 40” x 48“lengthways | Ast (in) | 94.5 | 153.5 | ||||
4.35 | Turning radius | Wa (in) | 84.4 | 104.7 | ||||
Performance data | 5.1 | Travel speed, laden/ unladen | mph | 6.2/8.7 | 5.9/7.5 | |||
5.2 | Lift speed, laden/ unladen | fpm | 7.5/9.5 | 7.5/9.5 | ||||
5.3 | Lowering speed, laden/ unladen | fpm | 9.5/9.5 | 9.5/9.5 | ||||
5.8 | Max. gradeability, laden/ unladen | % | 8月15日 | 6月15日 | ||||
5.10 | Service brake | Regenerative | Regenerative | |||||
Electric- Motor | 6.1 | Drive motor rating S2 60min | HP | 5.1 | 5.1 | |||
6.2 | Lift motor rating at S3 10% | HP | 3 | 3 | ||||
6.3 | Battery acc. to DIN 43531/ 35/ 36 A, B, C, no | no,5Pzs | no,5Pzs | |||||
6.4 | Battery voltage, nominal capacity K5 | V/ Ah | 24/350 | 24/350 | ||||
6.5 | Battery weight | lbs | 704 | 704 | ||||
6.6 | Energy consumption acc. to VDI cycle | kWh/h | ||||||
Additional data | 8.1 | Type of drive control | AC- speed control | AC- speed control | ||||
8.4 | Sound level at driver`s ear acc. to EN 12053 | dB(A) | 68 | 68 | ||||
8.6 | Steering | Mechanical | Mechanical |
