XE NÂNG ĐIỆN CAO 1200-1800KG
PS XX TLS
0938 707 986
NOBLELIFT GERMANY
12 THÁNG
XE NÂNG ĐIỆN CAO
HOTLINE TƯ VẤN : 0938 707 986
VIDEO HOẠT ĐỘNG SẢN PHẨM
Type sheet for industrial truck acc. to VDI 2198 | ||||||
Distinguishing mark | 1.2 | Manufacturer`s type designation | PS 12L(3600) | PS 16L(4600) | PS 20L(4600) | |
1.3 | Power (battery ,diesel, petrol, gas, manual) | Battery | ||||
1.4 | Operator type | Pedestrian | ||||
1.5 | Load Capacity / rated load | Q(t) | 1.2 | 1.6 | 2.0 | |
1.6 | Load centre distance | C(mm) | 600 | |||
1.8 | Load distance ,centre of drive axle to fork | x(mm) | 647 | |||
1.9 | Wheelbase | y(mm) | 1248 | 1293 | 1429 | |
Weight | 2.1 | Service weight | Kg | 1007 | 1340 | 1579 |
2.2 | Axle loading, laden front/rear | Kg | 684/1523 | 930/2010 | 1000/2579 | |
2.3 | Axle loading, unladen front/rear | Kg | 610/397 | 850 /490 | 900/679 | |
Tires, chassis | 3.1 | Tires | Polyurethane (PU) | |||
3.2 | Tire size, front | ÆxW (mm) | Ф230×75 | |||
3.3 | Tire size, rear | ÆxW (mm) | Ф85×75 | |||
3.4 | Additional wheels(dimensions) | ÆxW (mm) | Ф150x54 | |||
3.5 | Wheels, number front/rear(x=driven wheels) | 1x+1/4 | ||||
3.6 | Track, front | b10(mm) | 522 | |||
3.7 | Track, rear | b11(mm) | 390 | |||
Dimensions | 4.2 | Lowered mast height | h1(mm) | 2308 | 2108 | 2228 |
4.3 | Free Lift height | h2(mm) | 1760 | 1520 | 1520 | |
4.4 | Lift height | h3(mm) | 3600 | 4600 | 4600 | |
4.5 | Extended mast height | h4(mm) | 4088 | 5088 | 5208 | |
4.9 | Height of tiller in drive position min./ max. | h14(mm) | 850/1385 | |||
4.15 | Height, lowered | h13(mm) | 90 | |||
4.19 | Overall length | l1(mm) | 1919 | 1964 | 2100 | |
4.20 | Length to face of forks | l2(mm) | 769 | 814 | 950 | |
4.21 | Overall width | b1(mm) | 820 | |||
4.22 | Fork dimensions | s/e/l(mm) | 60/180/1150 | |||
4.25 | Distance between fork-arms | b5(mm) | 570 | |||
4.32 | Ground clearance, centre of wheelbase | m2(mm) | 28 | 28 | 23 | |
4.33 | Aisle width for pallets 1000X1200 crossways | Ast(mm) | 2336 | 2406 | 2536 | |
4.34 | Aisle width for pallets 800X1200 lengthways | Ast(mm) | 2456 | 2393 | 2523 | |
4.35 | Turning radius | Wa(mm) | 1440 | 1510 | 1640 | |
Performance data | 5.1 | Travel speed, laden/ unladen | km/h | 5.5/6.0 | 5.5/6.0 | 5.5/6.0 |
5.2 | Lift speed, laden/ unladen | m/s | 0.10/0.17 | 0.13/0.20 | 0.13/0.20 | |
5.3 | Lowering speed, laden/ unladen | m/s | 0.11/0.11 | 0.20/0.14 | 0.20/0.14 | |
5.8 | Max. gradeability, laden/ unladen | % | 6/12 | 6/12 | 6/10 | |
5.10 | Service brake | Electromagnetic | ||||
Electric- engine | 6.1 | Drive motor rating S2 60min | kw | 1.3 | 1.3 | 1.7 |
6.2 | Lift motor rating at S3 10% | kw | 1.5 | 3.2 | 3.2 | |
6.3 | Battery acc. to DIN 43531/35/36 A, B, C, no | 2VBS | 3VBS | 3PZS | ||
6.4 | Battery voltage, nominal capacity K5 | V/Ah | 24/180 | 24/270 | 24/350 | |
6.5 | Battery weight | kg | 175 | 230 | 288 | |
6.6 | Energy consumption acc: to VDI cycle | kWh/h | 0.95 | 1.59 | 1.70 | |
Additional data | 8.1 | Type of drive control | AC- speed control | |||
8.4 | Sound level at driver`s ear acc. to EN 12053 | dB(A) | <70 |
Designation | Lowered mast height h1(mm) | Free Lift height h2(mm) | Lift height h3(mm) | Extended mast height h4(mm) |
PS 12L | ||||
Two stage mast | 1958 | — | 2900 | 3380 |
2108 | — | 3200 | 3680 | |
2308 | — | 3600 | 4080 | |
Two stage mast FFL (Full-Free-Lift) |
1958 | 1410 | 2900 | 3380 |
2108 | 1560 | 3200 | 3680 | |
2308 | 1760 | 3600 | 4080 | |
PS 16L | ||||
Two stage mast | 1958 | — | 2900 | 3380 |
2108 | — | 3200 | 3680 | |
2308 | — | 3600 | 4080 | |
Two stage mast FFL (Full-Free-Lift) |
1958 | 1410 | 2900 | 3380 |
2108 | 1560 | 3200 | 3680 | |
2308 | 1760 | 3600 | 4080 | |
Three stage mast | 2008 | — | 4300 | |
2108 | — | 4600 | 5080 | |
Three stage mast FFL (Full-Free-Lift) |
2008 | 1420 | 4300 | 4780 |
2108 | 1520 | 4600 | 5080 | |
PS 20L | ||||
Two stage mast | 2078 | — | 2900 | 3500 |
2228 | — | 3200 | 3800 | |
2428 | — | 3600 | 4200 | |
Two stage mast FFL (Full-Free-Lift) |
2078 | 1410 | 2900 | 3500 |
2228 | 1560 | 3200 | 3800 | |
2428 | 1760 | 3600 | 4200 | |
Three stage mast | 2128 | — | 4300 | 4900 |
2228 | — | 4600 | 5200 | |
Three stage mast FFL (Full-Free-Lift) |
2128 | 1420 | 4300 | 4900 |
2228 | 1520 | 4600 | 5200 |
Bình luận
Sản phẩm cùng loại
XE NÂNG ĐIỆN PS B 1229
50,000,000 VND
XE NÂNG ĐIỆN CAO 1300KG/NÂNG CAO 3000MM
23,500,000 VND
XE NÂNG ĐIỆN CAO1000KG
90,000,000 VND

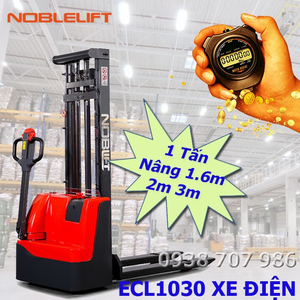

XE NÂNG ĐIỆN CAO 1000KG /NÂNG CAO 3200MM
50,000,000 VND

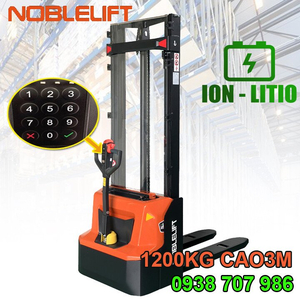

XE ĐIỆN NHỎ GỌN SỬ DỤNG TRÊN TẦNG LẦU
85,000,000 VND
XE NÂNG ĐIỆN CAO 2000KG /NÂNG CAO 3600MM
50,000,000 VND
XE NÂNG ĐIỆN CAO GẮN CÂN
88,000,000 VND
XE NÂNG ĐIỆN PSB 1534
50,000,000 VND
XE NÂNG ĐIỆN DÙNG CHO TẤT CẢ PALLET
265,000,000 VND

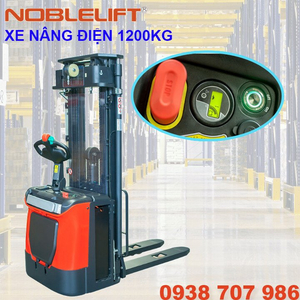

XE NÂNG ĐIỆN CAO 2000KG/NÂNG CAO 4600MM
